TP-Link Archer C6 AC1200 Gigabit MU-MIMO Wi-Fi Router

স্পেসিফিকেশন

Standards and Protocols

Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC1200, 5 GHz: 867 Mbps (802.11ac), 2.4 GHz: 300 Mbps (802.11n)

WiFi Range

3 Bedroom Houses, 4× Fixed High-Performance Antennas, Multiple antennas form a signal-boosting array to cover more directions and large areas, Beamforming, Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

Medium, Dual-Band, Allocate devices to different bands for optimal performance, MU-MIMO, Simultaneously communicates with multiple MU-MIMO clients, Airtime Fairness

Working Modes

Router Mode, Access Point Mode

Network Security

SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

Guest Network

1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network

VPN Server

OpenVPN, PPTP, WireGuard

VPN Client

OpenVPN, PPTP, WireGuard

WiFi Encryption

WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

Ethernet Ports

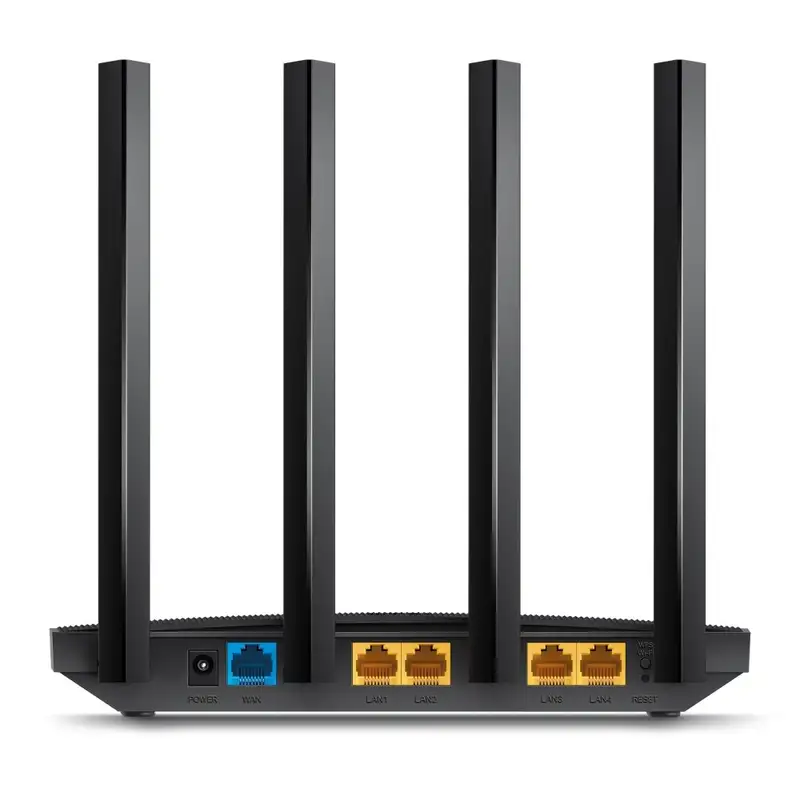

1× Gigabit WAN Port, 4× Gigabit LAN Ports

Power

12 V ⎓ 1 A

Buttons

WPS/Wi-Fi Button, Reset Button

Protocols

IPv4, IPv6

EasyMesh

Mesh networking creates smooth, fast, stable roaming. Archer C6 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability., Learn More

Parental Controls

URL Filtering, Time Controls

WAN Types

Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service

QoS by Device

Cloud Service

OTA Firmware Upgrade, TP-Link ID, DDNS

NAT Forwarding

Port Forwarding, Port Triggering, DMZ, UPnP

IPTV

IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP

Address Reservation, DHCP Client List, Server

DDNS

TP-Link, NO-IP, DynDNS

Management Features

Tether App, Webpage, Check Web Emulator

Network Services Enabled by Default

Web Server, Manage and configure device through web (HTTP/HTTPS), • Port: 80/443 Protocol: TCP, DNS, DNS, • Port: 53 Protocol: TCP & UDP

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)

Certifications

FCC, CE

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

WiFi Transmission Power

CE EIRP:, <20dBm(2.4GHz), <23dBm(5GHz), FCC:, <30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity

5GHz:, 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；, 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;, 11ac HT80 mcs9:-62dBm;, 2.4GHz:, 11g 54Mbps:-78dBm;

Dimensions (W×D×H)

8.5 × 4.6 × 1.2 in, (215 × 117 × 32 mm)

Package Content

Wi-Fi Router Archer C6, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
