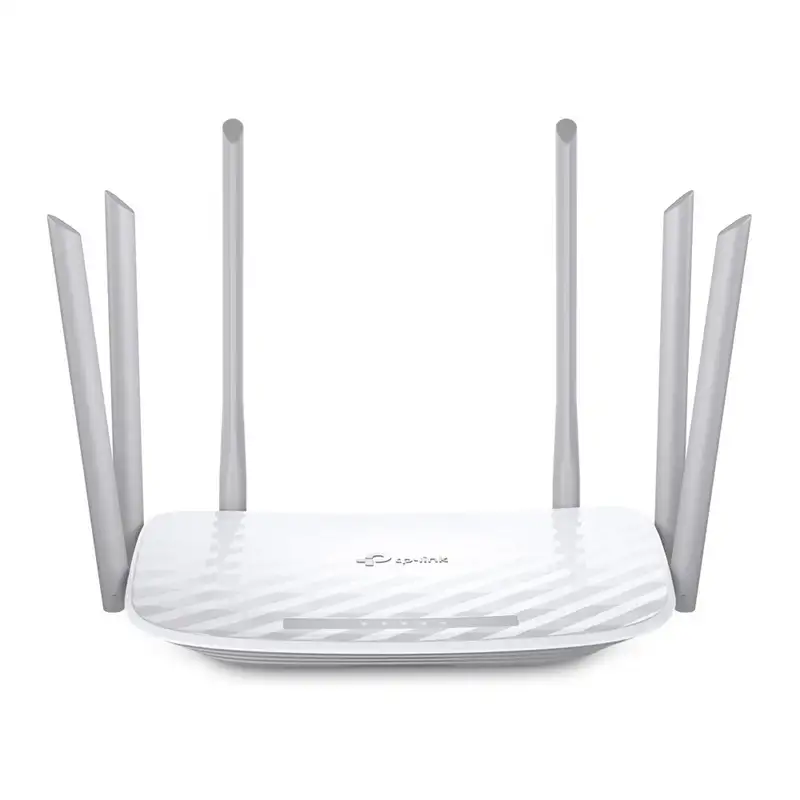

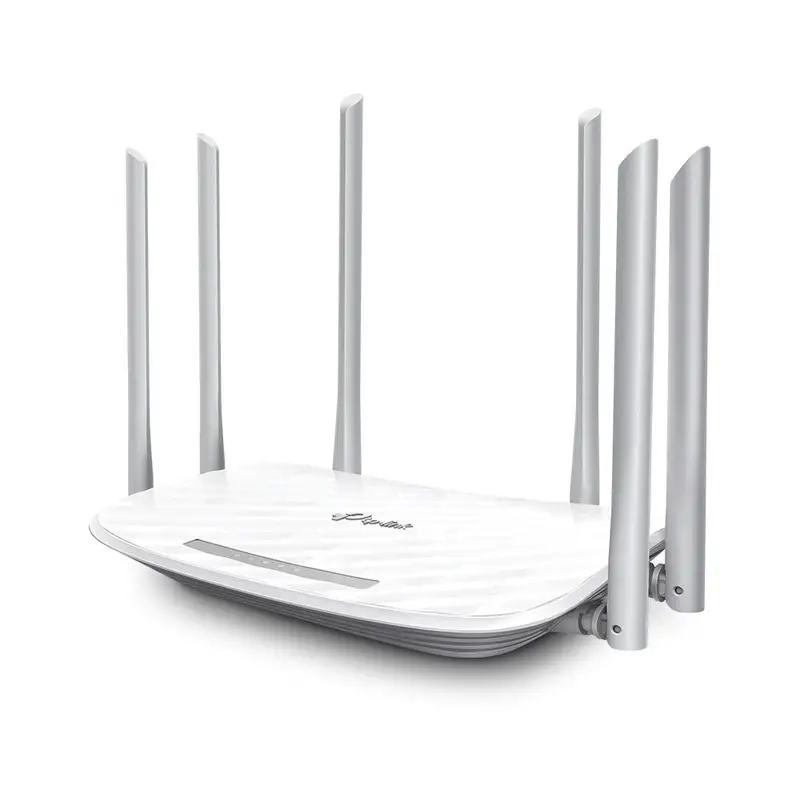

TP-Link Archer C86 AC1900 MU-MIMO Wi-Fi Router

স্পেসিফিকেশন

Standards and Protocols

Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC1900, 5 GHz: 1300 Mbps (802.11ac), 2.4 GHz: 600 Mbps (802.11n)

WiFi Range

3 Bedroom Houses, 6× Fixed High-Performance Antennas, Multiple antennas form a signal-boosting array to cover more directions and large areas, Beamforming, Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

Medium, Dual-Band, Allocate devices to different bands for optimal performance, 3×3 MU-MIMO, Simultaneously communicates with multiple MU-MIMO clients, Airtime Fairness

Working Modes

Router Mode, Access Point Mode

Network Security

SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

Guest Network

1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network

WiFi Encryption

WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

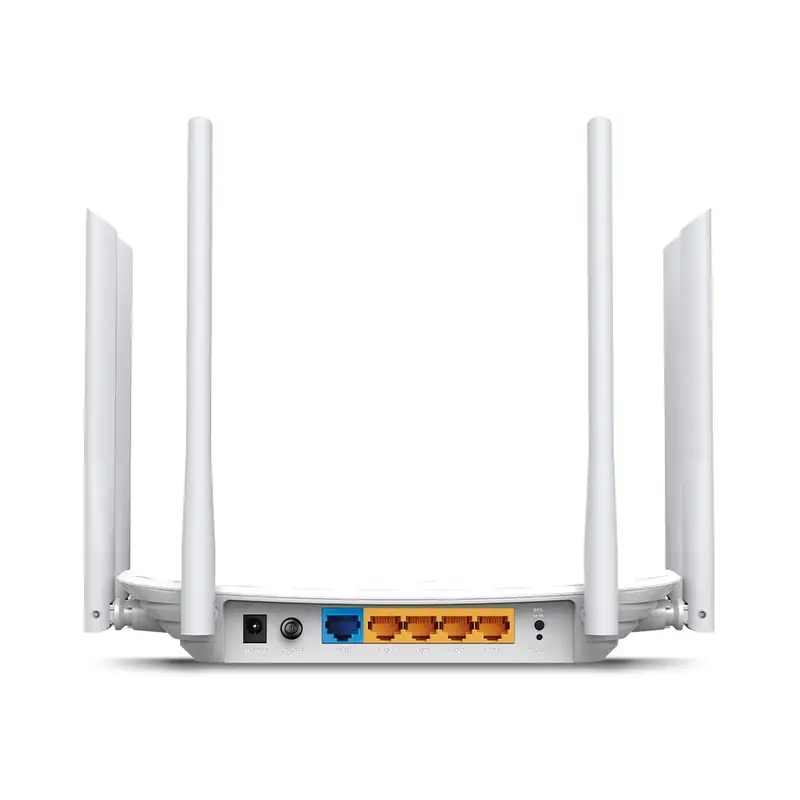

Ethernet Ports

1× Gigabit WAN Port, 4× Gigabit LAN Ports

Power

US Version, 12 V ⎓ 1.5 A, EU Version, 12 V ⎓ 1 A

Buttons

WPS/Wi-Fi Button, Power On/Off Button, Reset Button

Protocols

IPv4, IPv6

EasyMesh

Mesh networking creates smooth, fast, stable roaming. Archer C86 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi., Learn More

Parental Controls

URL Filtering, Time Controls

WAN Types

Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service

QoS by Device

Cloud Service

OTA Firmware Upgrade, TP-Link ID, DDNS

NAT Forwarding

Port Forwarding, Port Triggering, DMZ, UPnP

IPTV

IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN

DHCP

Address Reservation, DHCP Client List, Server

DDNS

TP-Link, NO-IP, DynDNS

Management Features

Tether App, Webpage, Check Web Emulator>

Network Services Enabled by Default

Web Server, Manage and configure device through web (HTTP/HTTPS), • Port: 80/443 Protocol: TCP, DNS, DNS, • Port: 53 Protocol: TCP & UDP

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)

Certifications

FCC, CE

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

WiFi Transmission Power

CE:, <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz), FCC:, <30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity

5GHz:, 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm, 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm, 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm, 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm, 2.4GHz:

Dimensions (W×D×H)

9.1 × 5.1 × 1.5 in, (229.9 × 144.2 × 37.2 mm)

Package Content

Wi-Fi Router Archer C86, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
