TP-Link XZ000-G7 1-Port Gigabit XPON ONU

স্পেসিফিকেশন

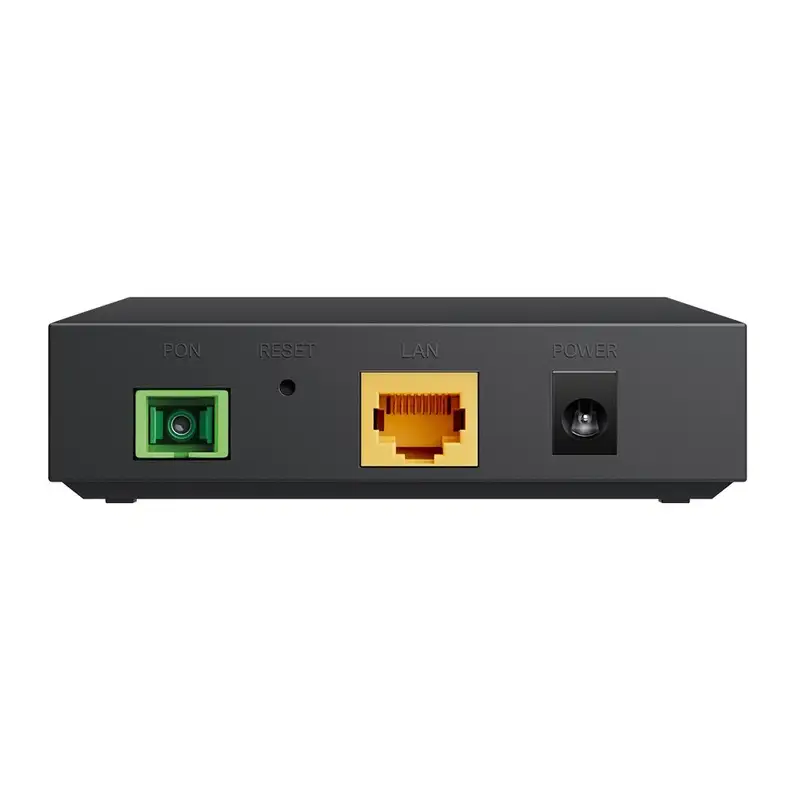

Interface

1 PON Port, 1 10/100/1000 Mbps RJ45 Port

Button

1 RESET Button

External Power Supply

9VDC/0.6A

IEEE Standards

IEEE 802.3, 802.3u, 802.1p, 802.1Q

Data Rates

Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*, Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*

Wave Length

Upstream: 1310 nm, Downstream: 1490 nm

Dimensions ( W x D x H )

3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)

Distance

0–20 Km Max

GPON Standards

ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4

Optical Module

Class B+

Receiver

Super-TIA

Transmitter

DFB Laser

Advanced Features

Upstream and Downstream FEC,, Dynamic Bandwidth Allocation(DBA) support NSR/SR,, Up to 16 T-CONTs and 256 GEM Ports,, Optical power detection,, Dying Gasp,, Terminal Silent mechanism

VLAN

802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect

Security

AES Encryption, Packet Filter based on VLAN

Management Features

Local management: WebGUI, Telnet, Remote management: OMCI

IGMP

IGMP v1/v2/v3

Package Content

XZ000-G7, Power Adapter

Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser, Subscription with an internet service provider (for internet access)

Certifications

CE

Environment

Operating Temperature: 0℃–40℃ (32℉–104℉), Storage Temperature: -40℃–60℃ (-40℉–140℉), Operating Humidity: 10%–90% non-condensing, Storage Humidity: 5%–90% non-condensing
